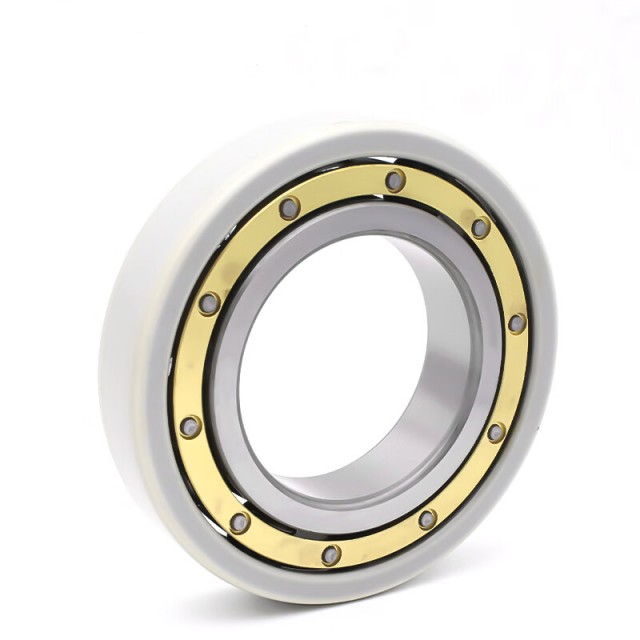

Electrically Insulated Bearing 6316/C3VL0241 Deep Groove Ball Bearings 6316 For Motor
Electric insulated deep groove ball bearings are coated with an electric insulation coating on the outer surface of the inner or outer ring. This coating can prevent stray currents from passing through the bearing, protect it from electrical corrosion damage, and help prevent lubricant degradation caused by current discharge.
We can also provide other models:
| d | D | B | weight/kg | Model number |
| 70 | 150 | 35 | 2,5 | 6314/C3VL0241 |
| 75 | 130 | 25 | 1,2 | 6215/C3VL0241 |
| 75 | 160 | 37 | 3,05 | 6315/C3VL0241 |
| 80 | 140 | 26 | 1,4 | 6216/C3VL0241 |
| 80 | 170 | 39 | 3,55 | 6316/C3VL0241 |
| 85 | 150 | 28 | 1,75 | 6217/C3VL0241 |
| 85 | 180 | 41 | 4,1 | 6317/C3VL0241 |
| 90 | 160 | 30 | 2,4 | 6218/C3VL0241 |
| 90 | 190 | 43 | 4,9 | 6318/C3VL0241 |
| 95 | 170 | 32 | 2,5 | 6219/C3VL0241 |
| 95 | 200 | 45 | 5,65 | 6319/C3VL0241 |
| 100 | 180 | 34 | 3,15 | 6220/C3VL0241 |
| 100 | 215 | 47 | 7 | 6320/C3VL0241 |
| 110 | 200 | 38 | 4,25 | 6222/C3VL0241 |
| 110 | 240 | 50 | 9,65 | 6322/C3VL0241 |
| 120 | 215 | 40 | 5,2 | 6224/C3VL0241 |
| 120 | 260 | 55 | 12,5 | 6324/C3VL2071 |
| 130 | 230 | 40 | 5,75 | 6226/C3VL2071 |
| 130 | 280 | 58 | 15,2 | 6326/C3VL2071 |
| 140 | 300 | 62 | 18,5 | 6328/C3VL2071 |
| 150 | 270 | 45 | 9,8 | 6230/C3VL2071 |
| 150 | 320 | 65 | 23 | 6330/C3VL2071 |
